12-Gate Prototype-to-MP Execution

A transparent 12-gate execution workflow from Engineering Verification (EVT) to Production Verification (PVT), with yield control targets and production-readiness evidence before mass release.

Best Fit For:For engineering teams needing a transparent, statistically-backed manufacturing process to avoid prototype-to-yield-collapse risks.

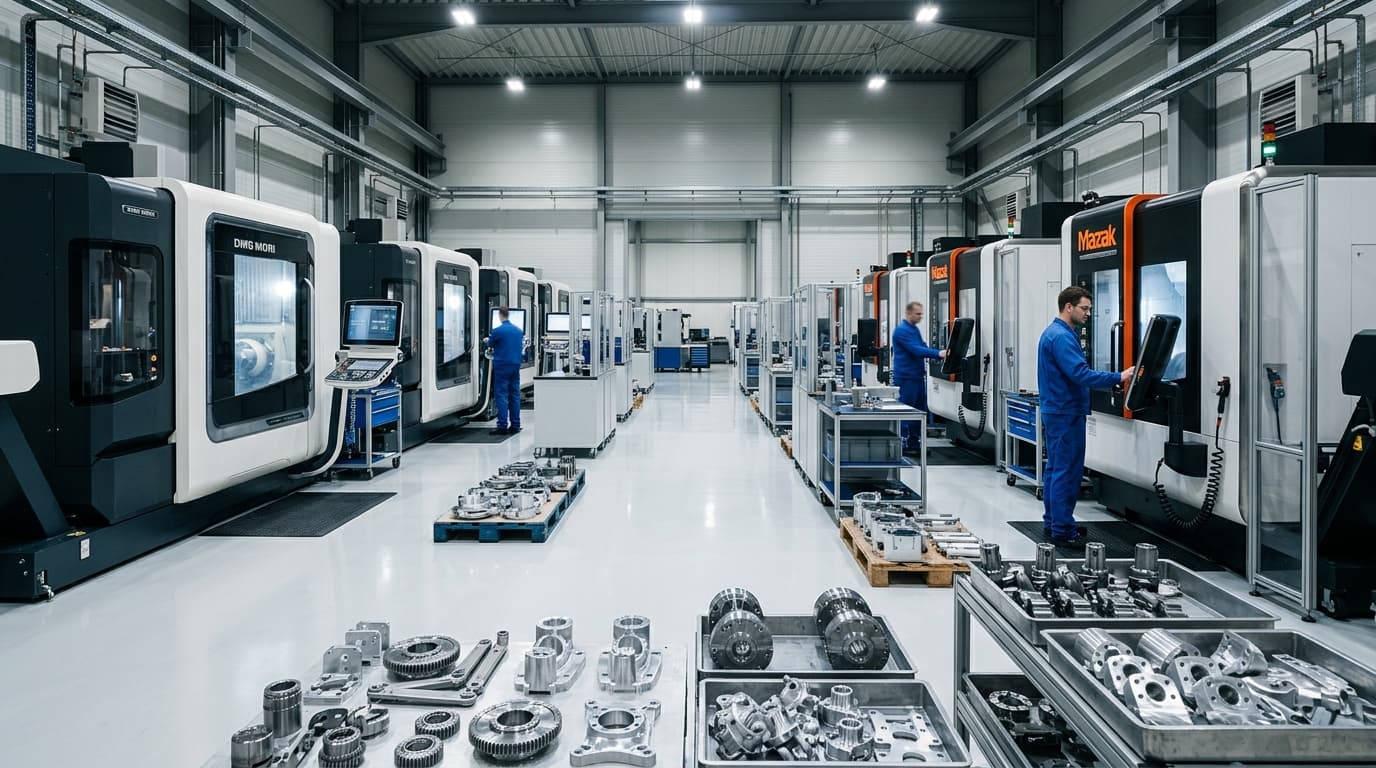

Servo manufacturer facility and prototyping

Capability Highlights

Transparent validation nodes (EVT/DVT/PVT) before tooling investment
Pilot lot logic (30-100 units) mapping prototype acceptance to mass control
Cpk >= 1.33 target review and early-MP yield tracking for critical processes

Typical Engagement Scope

New custom robot servo programs
High-volume OEM manufacturing transfer
Complex integrated actuator validation

Execution Focus

Gate 1-2 RFQ baseline and CTQ freeze: scope boundary, drawings, BOM risk, torque-speed-duty target, and buyer-owned acceptance criteria
Gate 3-5 EVT engineering proof: motor, drive, reducer, housing, firmware, thermal path, communication, and first fixture assumptions
Gate 6-8 DVT risk closure: tolerance stack, supplier alternates, environmental boundary, cable routing, burn-in method, and failure analysis loop
Gate 9-10 PVT and pilot execution: 30-100 unit repeatability, EOL station readiness, Cpk review, serialized records, and packaging trial
Gate 11-12 early MP release: ECO lock, outgoing inspection plan, yield tracking, spare policy, and repeat-order delivery rhythm

Program Evaluation Matrix

Program Metric	Typical Range	Procurement Value
Process Capability (Cpk)	>= 1.33 target before mass release	Reduces the risk that manufacturing variation compromises final robot joint performance.
Pilot Lot Size	30 to 100 units	Checks whether prototype performance can be repeated under the intended production process.
Gate ownership	EVT, DVT, PVT, pilot, and early MP checkpoints	Clear ownership prevents acceptance criteria, fixture readiness, and ECO approvals from being delayed until launch pressure is high.

Program Control Logic

Situation	Recommended Path	Evidence to Confirm
A handmade prototype works but mass-production risk is high	Move through EVT, DVT, PVT, pilot, and early MP gates with documented acceptance criteria	Gate owner, CTQ list, sample size, test fixture status, ECO status, and release decision for each gate
Pilot build must prove repeatability before tooling spend	Use a 30-100 unit pilot lot when tolerances, assembly steps, fixtures, and supplier alternates need proof	Yield report, Cpk for critical dimensions, EOL data, burn-in summary, and failure-analysis record
Cost-down or component changes appear after approval	Control every change through ECO review, buyer sign-off, and affected-gate revalidation	ECO number, before/after BOM or drawing, risk assessment, retest scope, and signed release

RFQ Preparation Checklist

Define exact pass/fail criteria for torque, current, heat rise, backlash, encoder zero, communication, noise, IP, and burn-in where applicable
Share the gate list your team expects: RFQ, CTQ freeze, EVT, DVT, PVT, pilot lot, early MP, or buyer-specific approval stages
Specify prototype quantity, pilot run quantity, expected annual volume, spare sample policy, and target SOP window
Identify critical-to-quality dimensions, supplier-controlled components, approved alternates, and ECO sign-off rules before pilot lock
List fixture, calibration, EOL test, inspection, yield, Cpk, packaging, labeling, and export evidence required before MP release

Risk and Mitigation

Prototypes pass but mass production yield collapses: Use a 12-gate review with pilot run validation and Cpk data before authorizing MP.
Silent component changes to save cost: The ECO (Engineering Change Order) workflow records buyer approval for BOM changes after pilot lock.
Pilot units are built without production-like fixtures or records: Tie pilot approval to fixture version, calibration method, EOL fields, serialized data, packaging trial, and yield summary before early MP.

Program QA Flow

Checkpoint	Method	Pass Evidence
EVT/DVT/PVT gate review	Define gate owner, CTQ list, sample size, fixture readiness, and pass/fail limits before each phase	Gate review record with decision, issues, owner, due date, and next-phase release status
Pilot capability review	Run 30-100 units through the intended process and evaluate yield, Cpk, EOL data, and failed-unit causes	Pilot yield report, Cpk summary, fixture data, burn-in record, and corrective-action log
Early MP containment	Keep heightened inspection until repeat yield, supplier alternates, packaging, and ECO controls are stable	Early MP release checklist, >= 95% yield target review, and signed ECO status

Program Evidence

Engineering Evidence Pack for 12-Gate Prototype-to-MP Execution

For OEM pages, the first engineering review defines execution gates, missing data, and production-readiness evidence before kickoff.

Scope baseline

Motor, drive, actuator, firmware, harness, fixture, and test responsibility are separated before quotation.

Missing-input list

Open items such as torque-speed data, duty cycle, envelope, protocol, encoder, and target launch country are flagged early.

Sample validation plan

Prototype checks are tied to load profile, thermal rise, backlash, noise, current limit, and end-of-line pass criteria.

Quote assumptions

Tooling, fixture, pilot lot, annual forecast, packaging, documentation, and delivery assumptions are made explicit.

Evidence Group	What to Attach	Buyer Value
Motion and thermal	Torque-speed target, current limit, duty cycle, temperature path, and derating assumption.	Separates continuous-duty capability from peak torque claims before sample approval.
Interface control	STEP or drawing revision, flange, bore, cable exit, connector, encoder, and protocol map.	Keeps motor, drive, harness, and firmware assumptions aligned before tooling.
Validation record	EVT, DVT, PVT gate criteria, EOL checklist, burn-in profile, and serial or lot traceability.	Gives engineering and procurement a common pass/fail basis for pilot lots.
Commercial path	Prototype quantity, pilot build target, annual forecast, delivery country, and packing notes.	Improves quote precision and avoids late shipping or documentation surprises.

Related Products

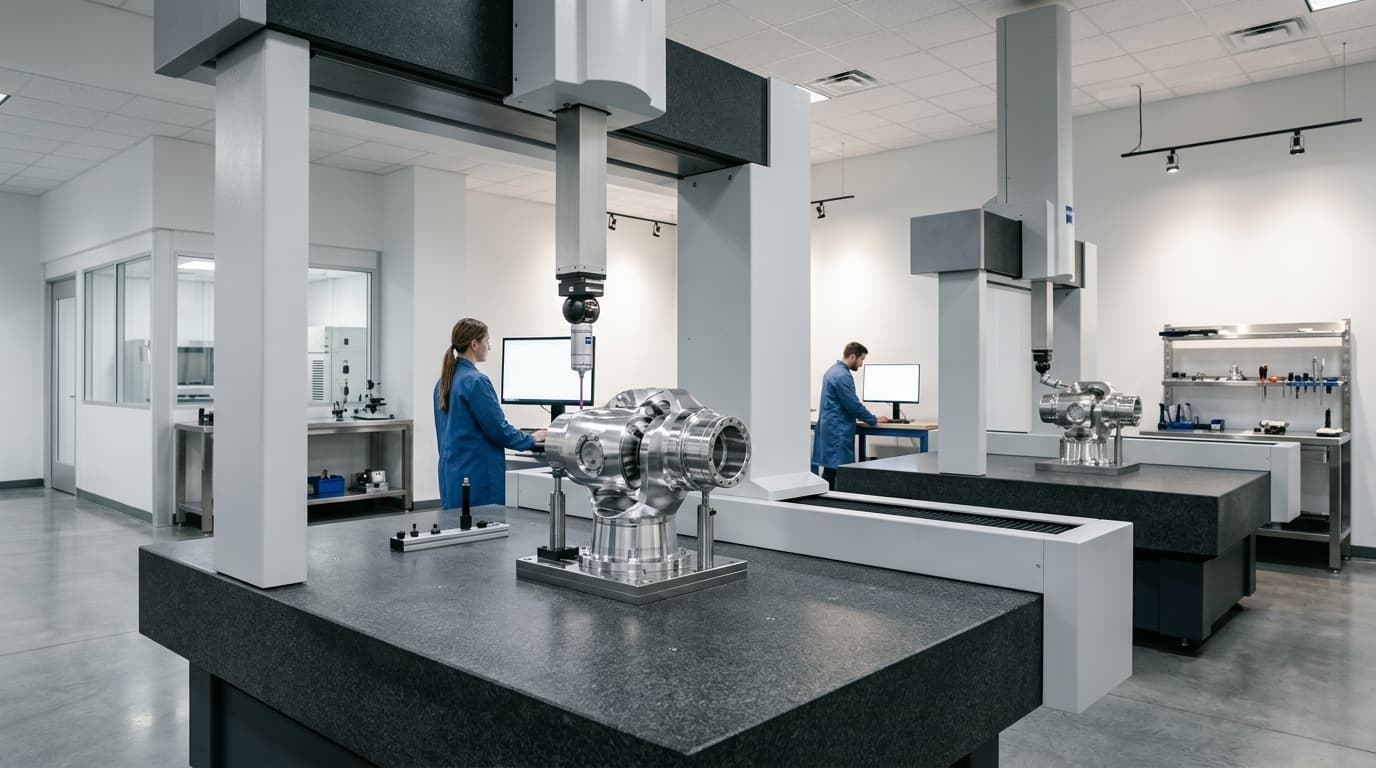

Servo manufacturer pilot production line

Buyer FAQ

How do you manage changes after the prototype is approved?

Any change is handled through ECO review, with affected-gate re-validation and explicit buyer sign-off where the change impacts the approved baseline.

What evidence should buyers expect before MP release?

Typical evidence includes pilot lot results, Cpk review for critical dimensions, functional test data, burn-in records, and signed ECO status.
